In the table below you can download cases drawings for SimACo controller and all additional boards. Files are compressed into 7z archives. Use free 7-Zip application to extract files.
Printing area (width x length) required to print cases:
- Controller case v.4.1.0 – 160,7mm x 219,5mm;
- Flow sensors case v.1.1.0 – 74,7mm x 105,7mm;
- LDD-H driver case v.1.1.0 – 115,9mm x 133,8mm;
- MOSFET driver case v.2.1.0 – 94,7mm x 131,1mm.
All cases have:
- brackets for the cables; cables can be fastened with a zip ties;
- holes for the cables in the external walls. Special grommets must be fitted in to these holes;
- brackets which allow to attach cases to the flat surfaces with a screws. Controller case has no brackets but has rubber feet instead;
- all cases requires proper screws – all additional parts are listed below in the table.
All parts do not require supports except stands for the controller case.
Parts designs allow small printing inaccuracies like elephant foot, over extrusion etc. All parts are optimized for 0.4 line width; they can be printed with 0.2mm layer height. Best to print with PETG or other material which has low thermal expansion and can widtstand some heat.
All parts already are oriented to the right position (for the printing) in the STL files.
All cases have three digits version number. First two digits show the version of the board for which the case is designed. The third digit shows case version for this board. For example: Controller case v.4.1.0 – case is designed to fit main board v.4.1 and case version for this version of the board is 0.
| File/ part name | Number of parts |
Part picture |

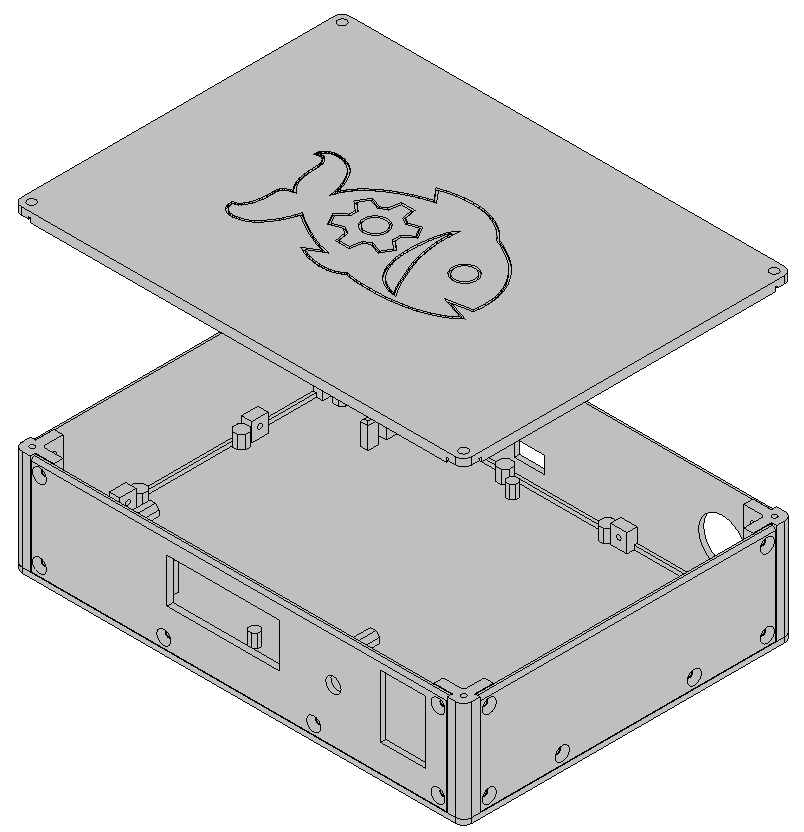

Controller case v.4.1.1 |
||
 |
||
| Controller case v.4.1.0 top.stl | 1 | |
| Controller case v.4.1.0 bottom.stl | 1 | |
| Controller case v.4.1.0 front panel.stl | 1 | |
| Controller case v.4.1.0 left & right panel.stl | 2 | |
| Controller case v.4.1.0 rear panel.stl | 1 | |
| Controller case v.4.1.0 stand.stl | 4 | |
|
Grommets for cables HSS-PG16-TPE |
2 |
|
|
Screws for the boards B2.9X6.5/BN994, Bossard |
8 |
|
|
Screws for the top part (lid) B2.9X9.5/BN994, Bossard |
4 |
|
|
Screws for the front, left and right, rear panels and bottom part B2.9X6.5/B14066, Bossard |
28 |
|
|
Self adhesive rubber feet RI-RBS-1-BLACK, Richco |
4 |
|
Flow sensors case v.1.1.0 |
||
 |
||
| Flow sensors case v.1.1.0 top.stl | 1 | |
| Flow sensors case v.1.1.0 bottom.stl | 1 | |
|
Grommets for cables HSS-M9-TPE-V0 |
4 |  |
|
Screws for the board B2.9X6.5/BN994, Bossard |
4 |  |
|
Screws for the top part (lid) B2.9X6.5/B14066, Bossard |
4 |  |
LDD-H driver case v.1.1.0 |
||
 |
||
| LDD-H driver case v.1.1.0 top.stl | 1 | |
| LDD-H driver case v.1.1.0 bottom.stl | 1 | |
|
Grommets for cables HSS-M9-TPE-V0 |
4 | |
|
Screws for the board B2.9X6.5/BN994, Bossard |
4 | |
|
Screws for the top part (lid) B2.9X6.5/B14066, Bossard |
4 | |
MOSFET driver case v.2.1.0 |
||
 |
||
| MOSFET driver case v.2.1.0 top.stl | 1 | |
| MOSFET driver case v.2.1.0 bottom.stl | 1 | |
|
Grommets for cables HSS-M9-TPE-V0 |
4 | |
|
Screws for the board B2.9X6.5/BN994, Bossard |
4 | |
|
Screws for the top part (lid) B2.9X6.5/B14066, Bossard |
4 | |
